Margret & Andy

2022 Sprinter 4x4 2500

170” Wheelbase

This van was built with versatility in mind. It bring together the ability to seat and sleep 4 people or transforms into a comfortable extended travel cruiser for 2. It checks all the boxes when it comes to capability and aesthetic appeal.

We started with a SmartFloor system to allow for safe passenger seating. The bed platform was designed to double in width at the press of a button (literally!). Two opposing benches make for a great eating nook and convert to an additional bed at night.

Highlights of this build include:

  • Convertible base cabinet shower with Laveo Dry-Flush toilet

  • Safari roof rack deck and large awning

  • Robust electrical system (540ah Lithium) with secondary 280A alternator, solar and shore power charging

  • Garage slide out tray for easy access to all your gear

  • Adjustable suspension, larger wheel/tire package and other exterior modifications

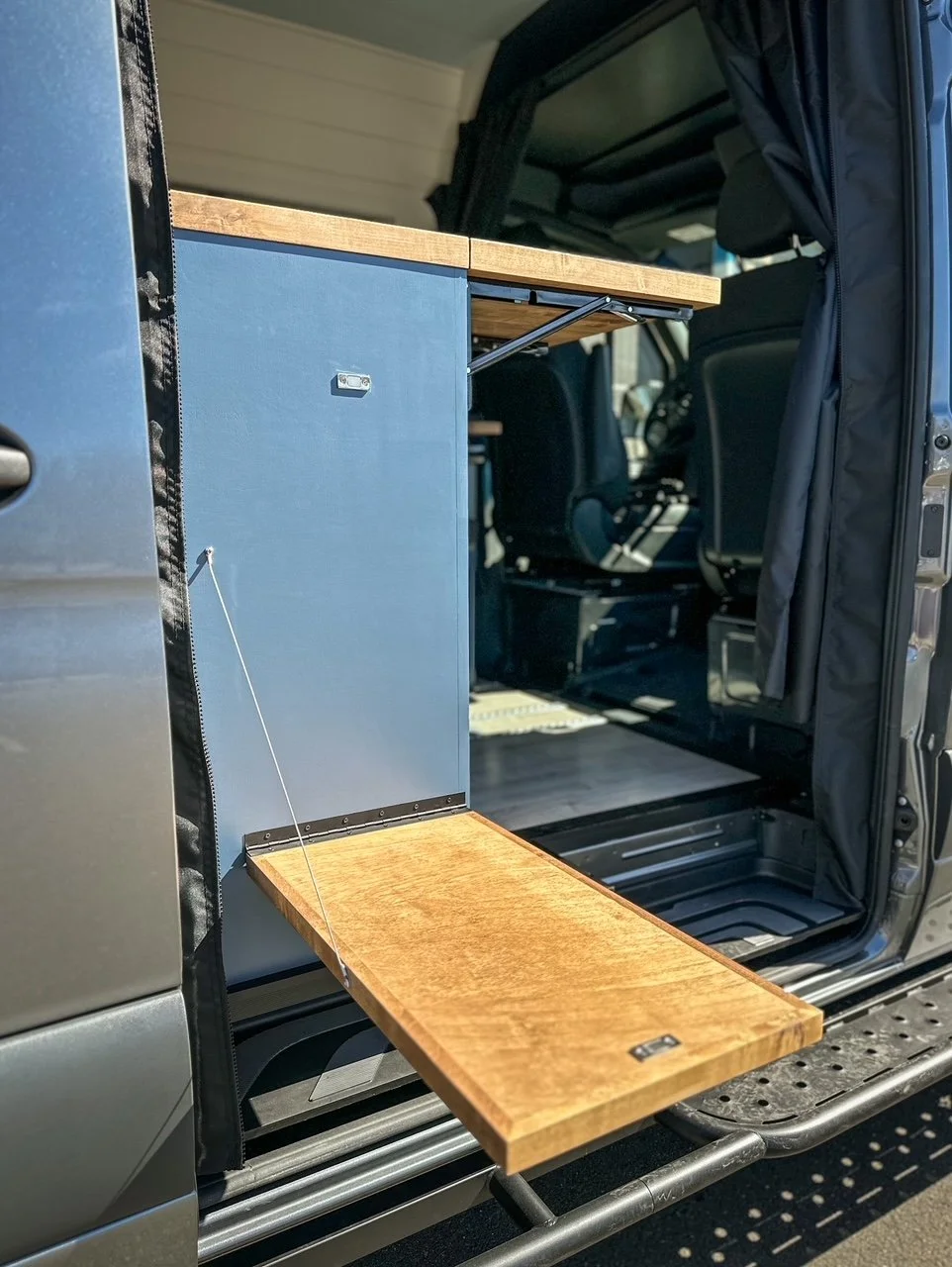

  • Drop down exterior “happy hour” table

  • Flatline Van Co. side steps

  • AMF Bruns quick release Smart seating

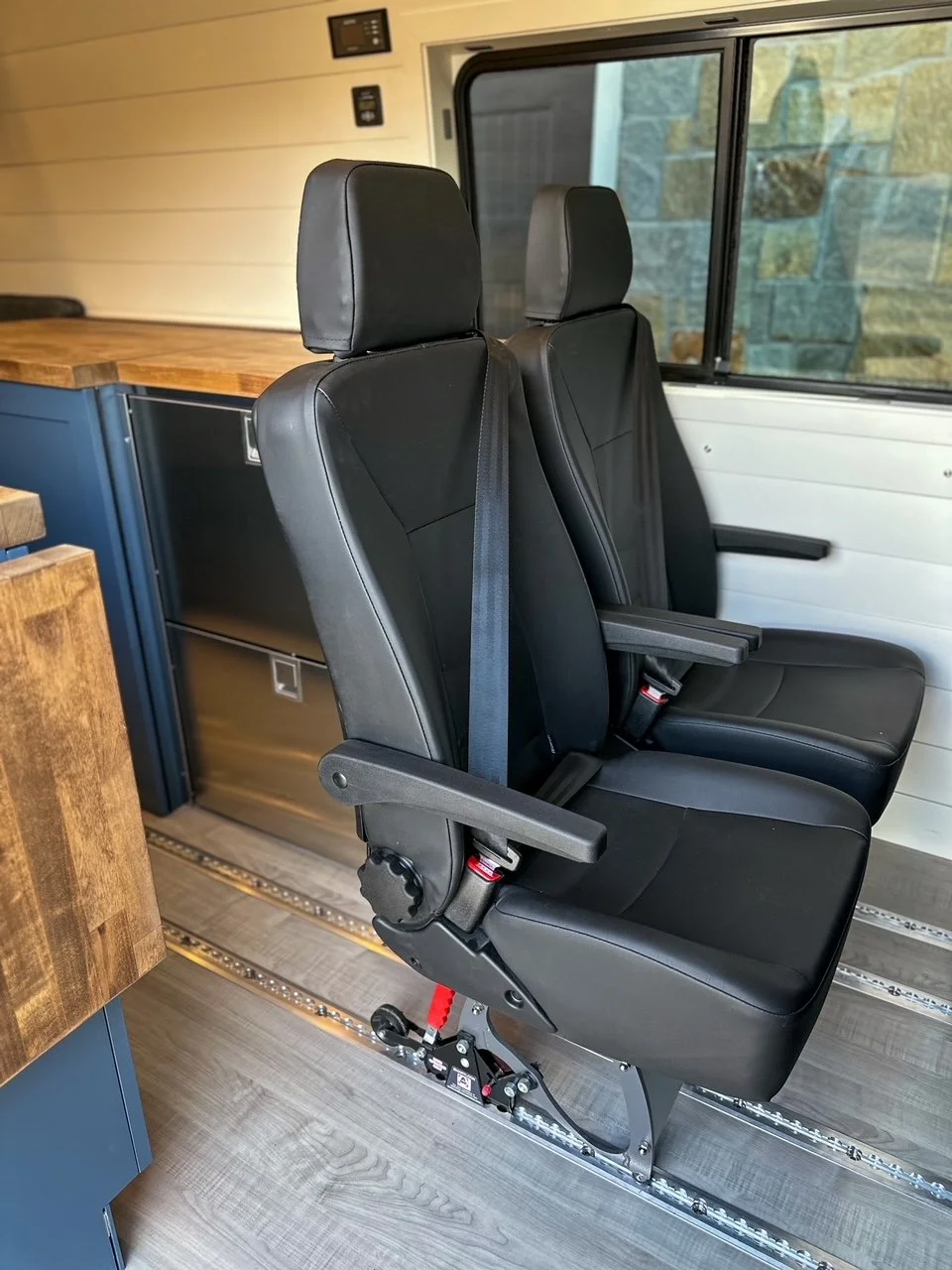

  • (2) AMF Bruns quick-release passenger seats

    Safety belts with ISO Fix attachment points

    Dual arm rests and reclining

    Meets all American and Canadian safety requirements including FMVSS / CMVSS, as well as UN / ECE directives such as ISO 10542 and DIN standard 75078

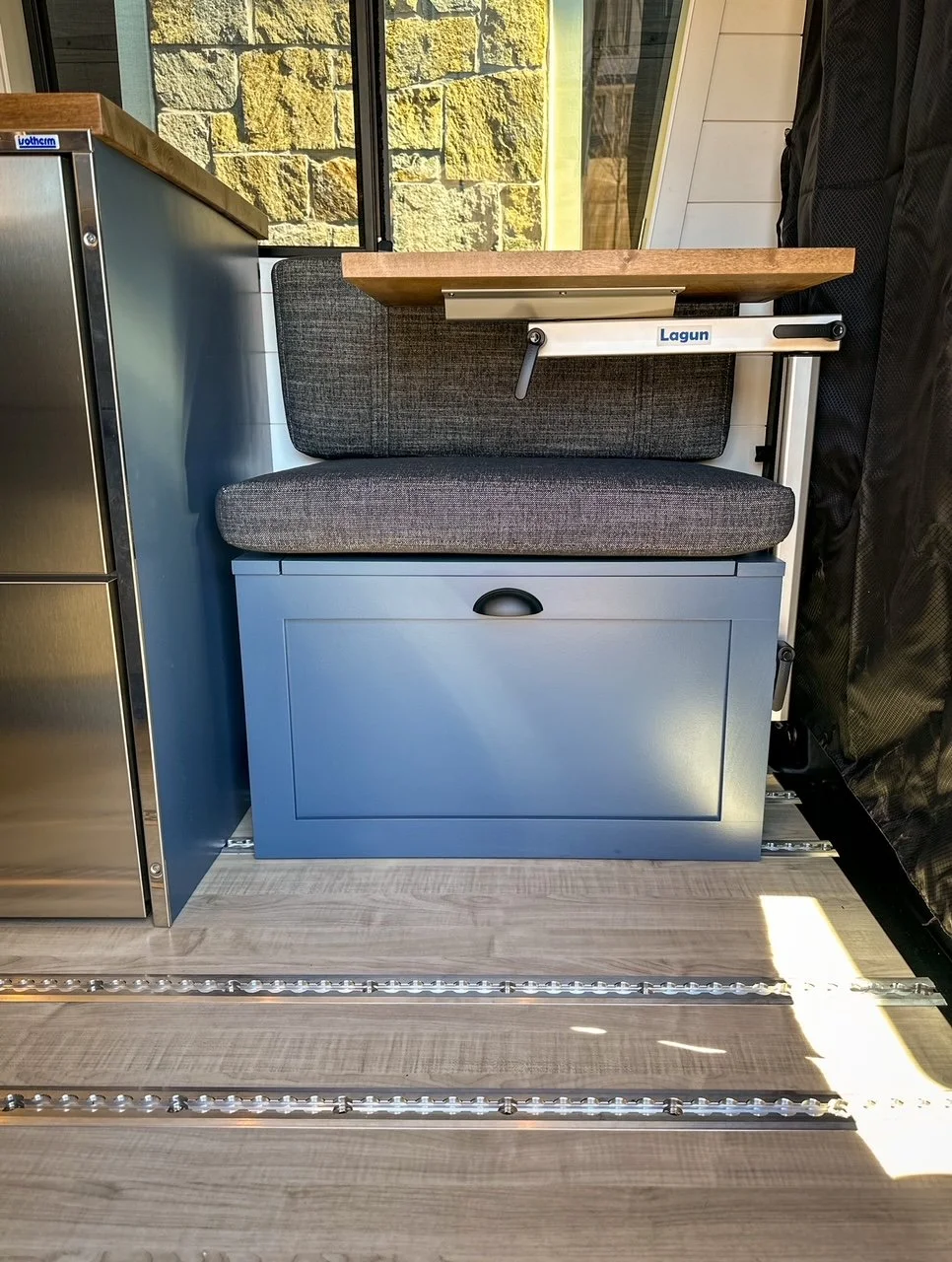

  • Lagun swivel table mount

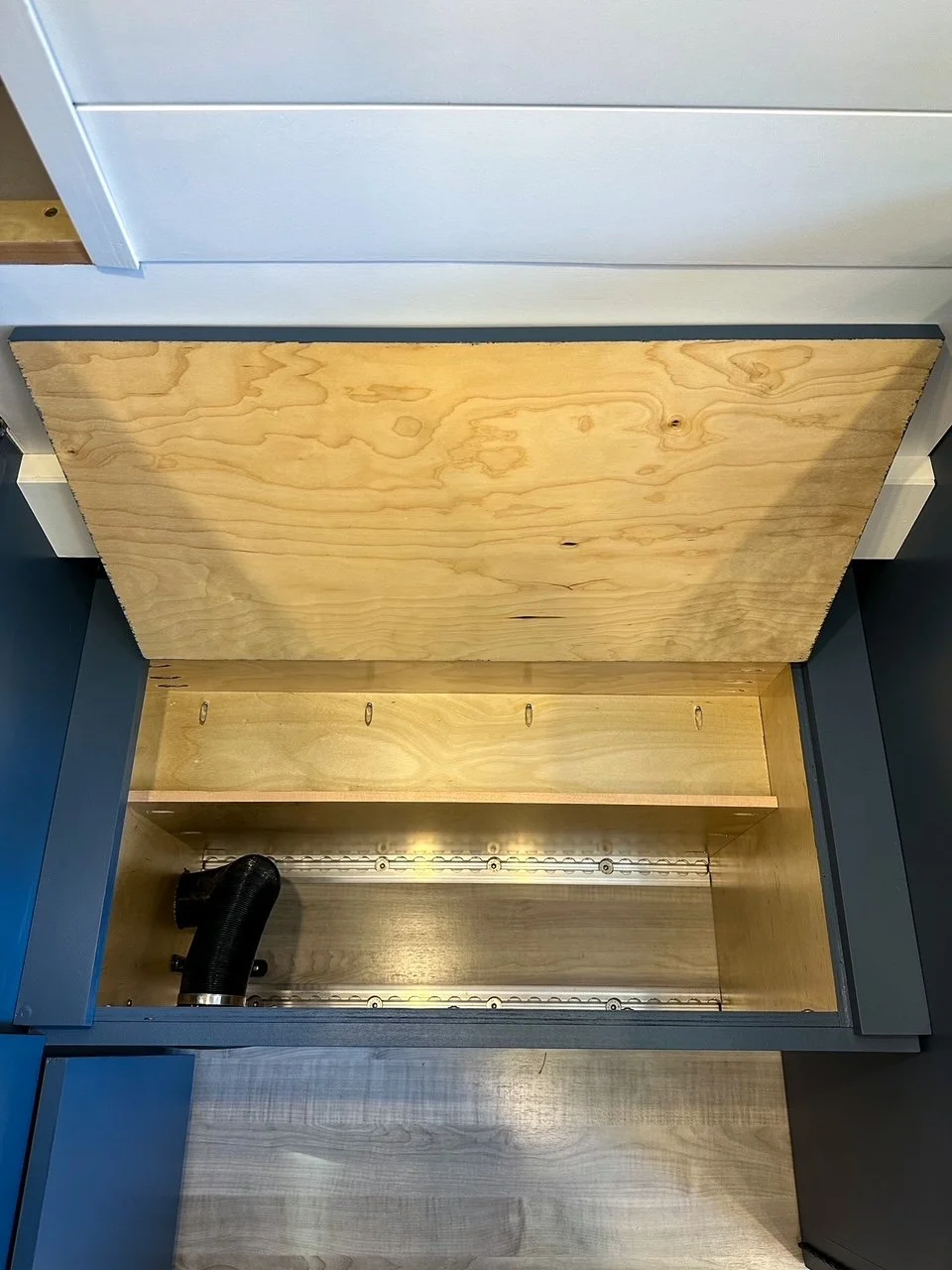

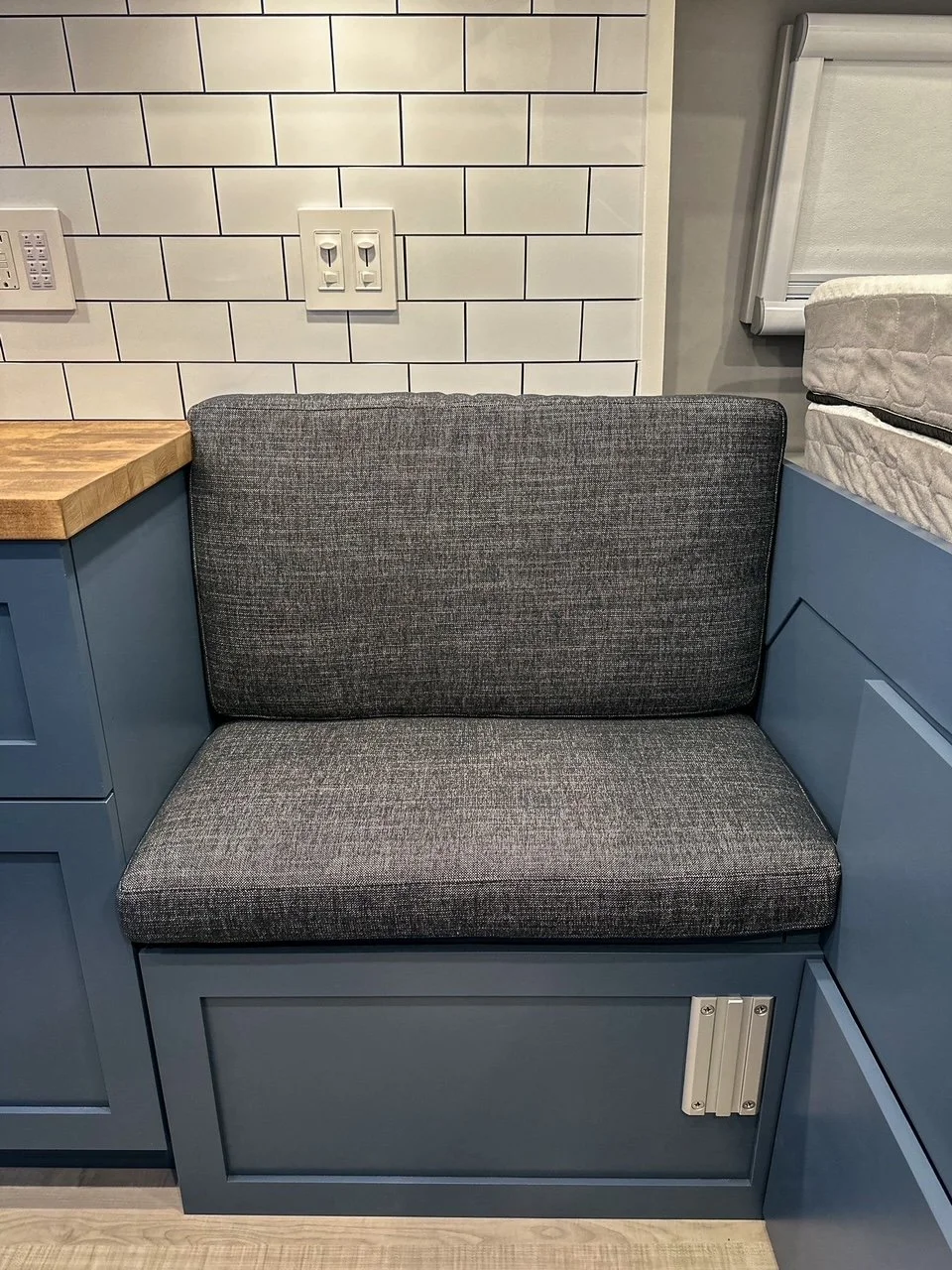

  • Custom, removable two-piece lounge bench with lift tops for interior storage

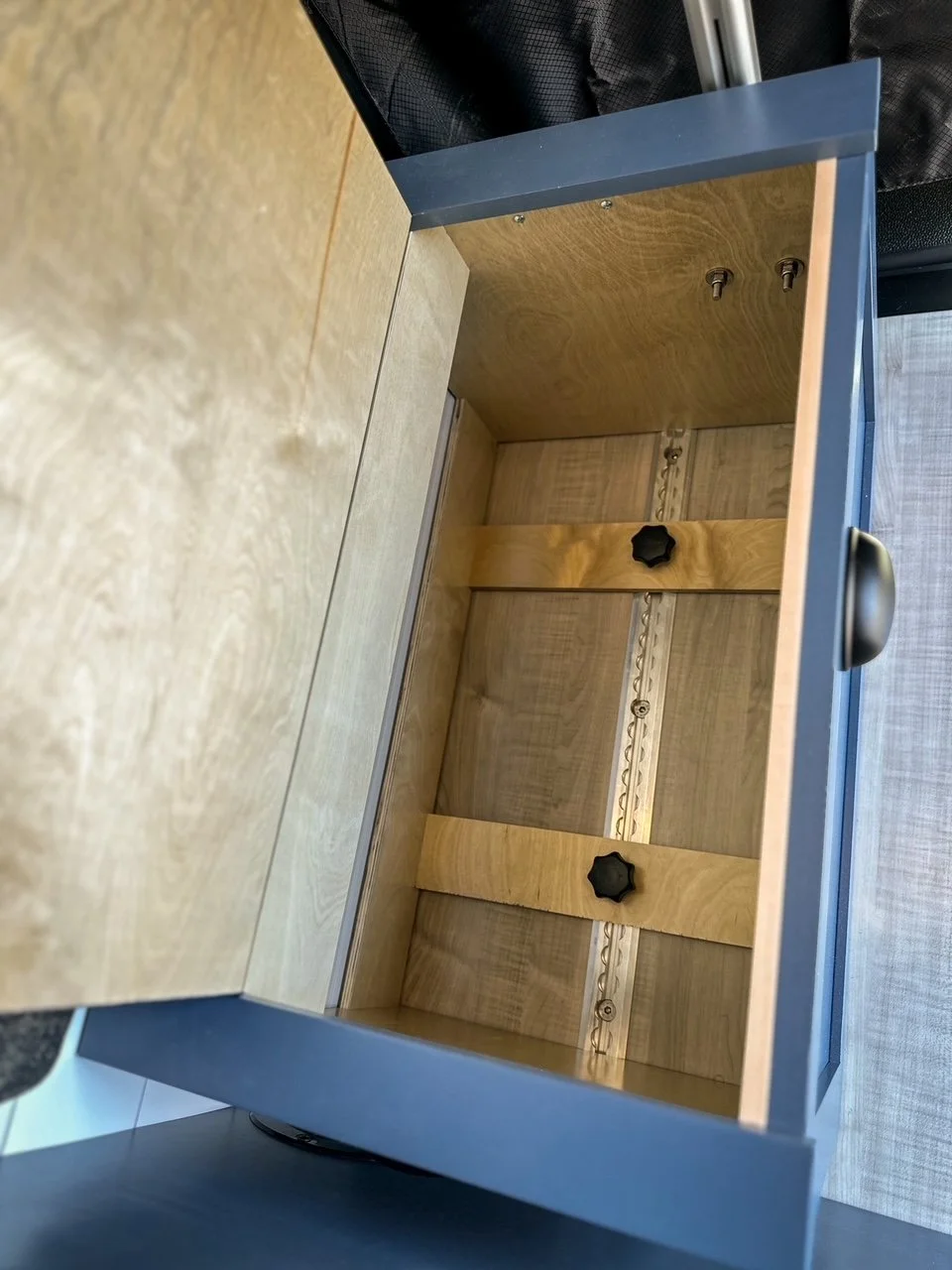

    • Secured with knobs for quickly and easily fastening to the floor L-track

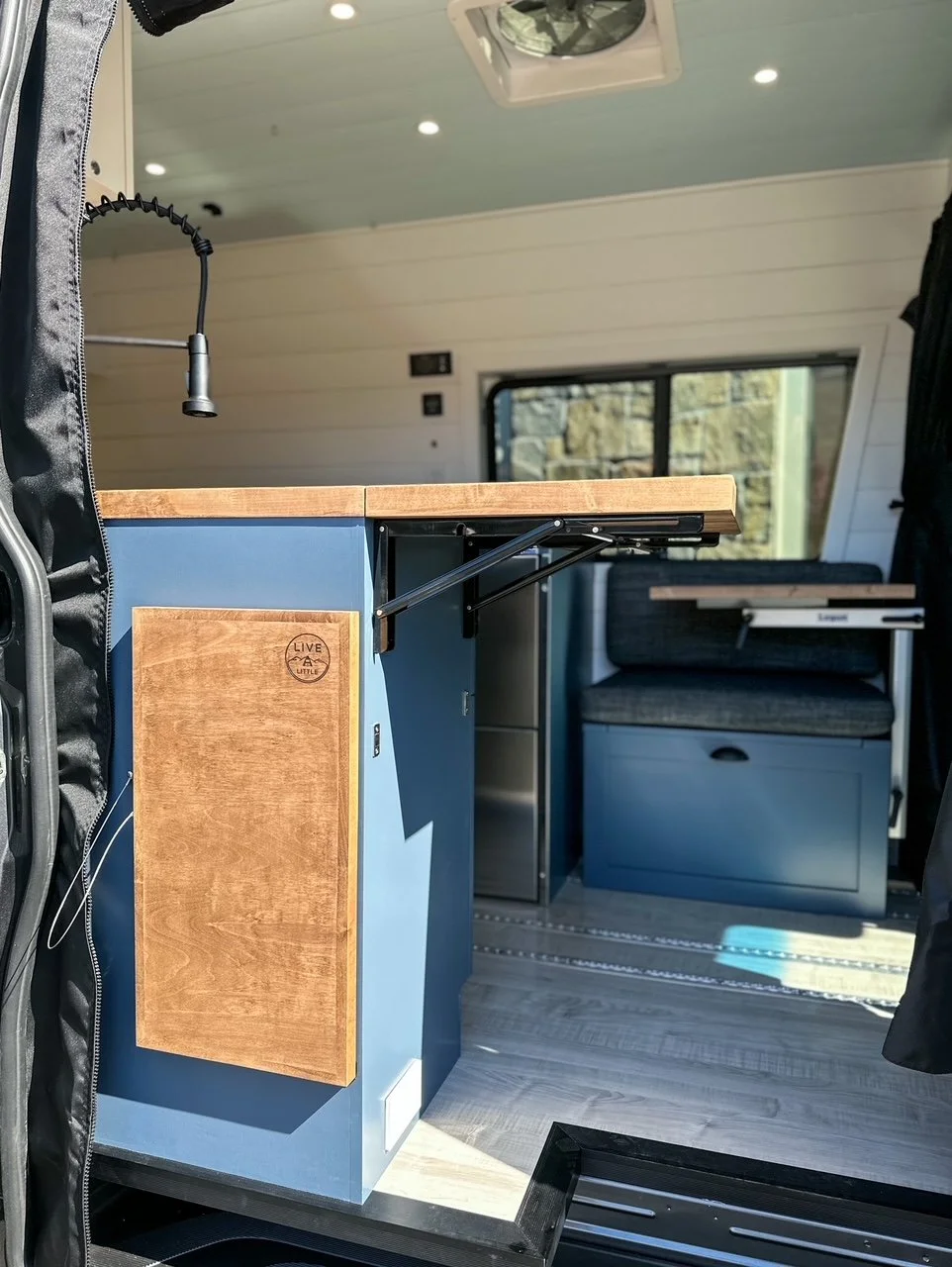

  • Custom cabinetry with Shaker door panels in Farrow & Ball Stiffkey Blue

  • LONWOOD Natural Topseal vinyl flooring in Singing Birds

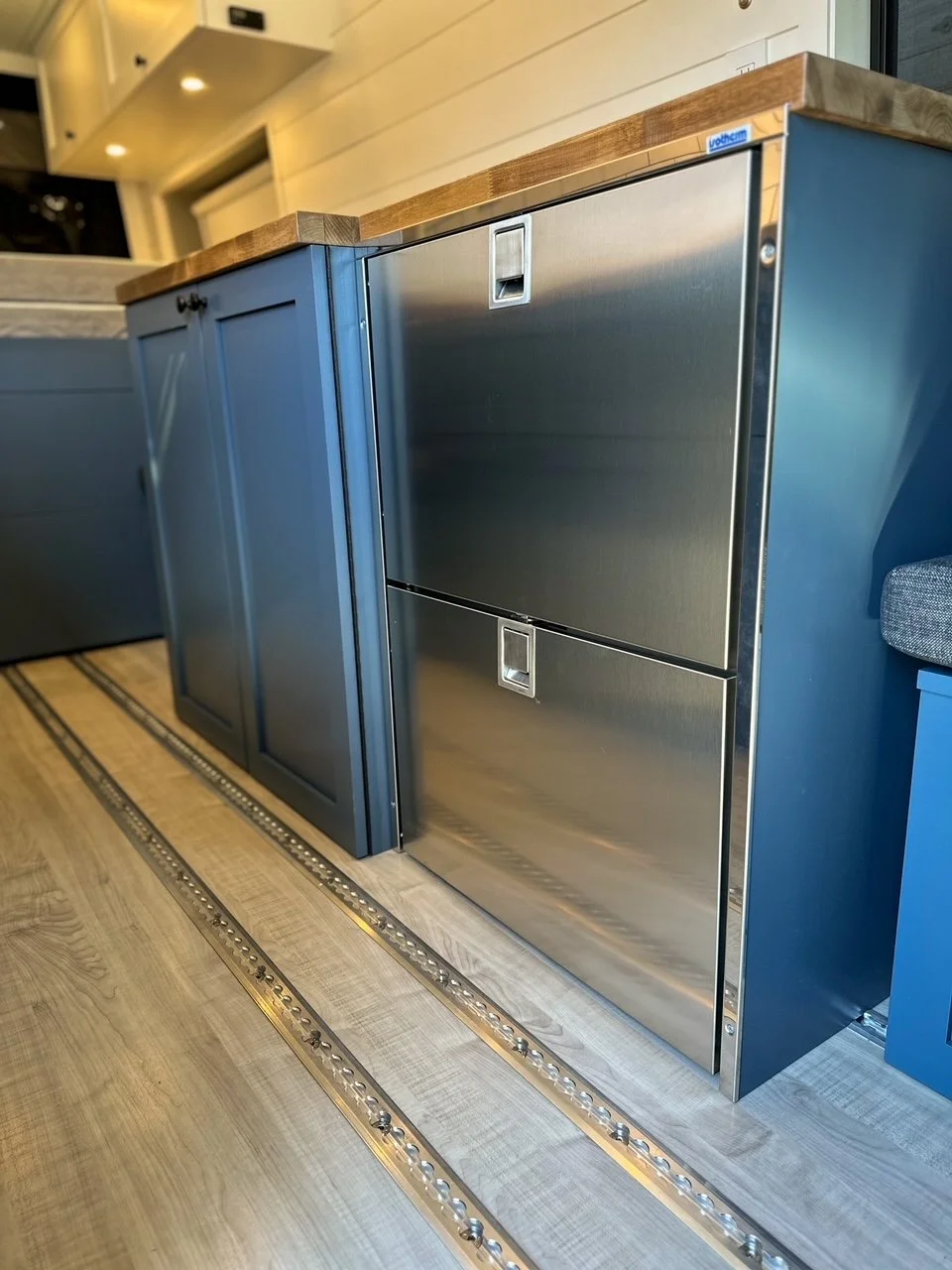

  • Isotherm Stainless Steel Drawer 160 INOX fridge/freezer

  • Base cabinet 24x32” convertible shower

  • Laveo Dry-Flush toilet

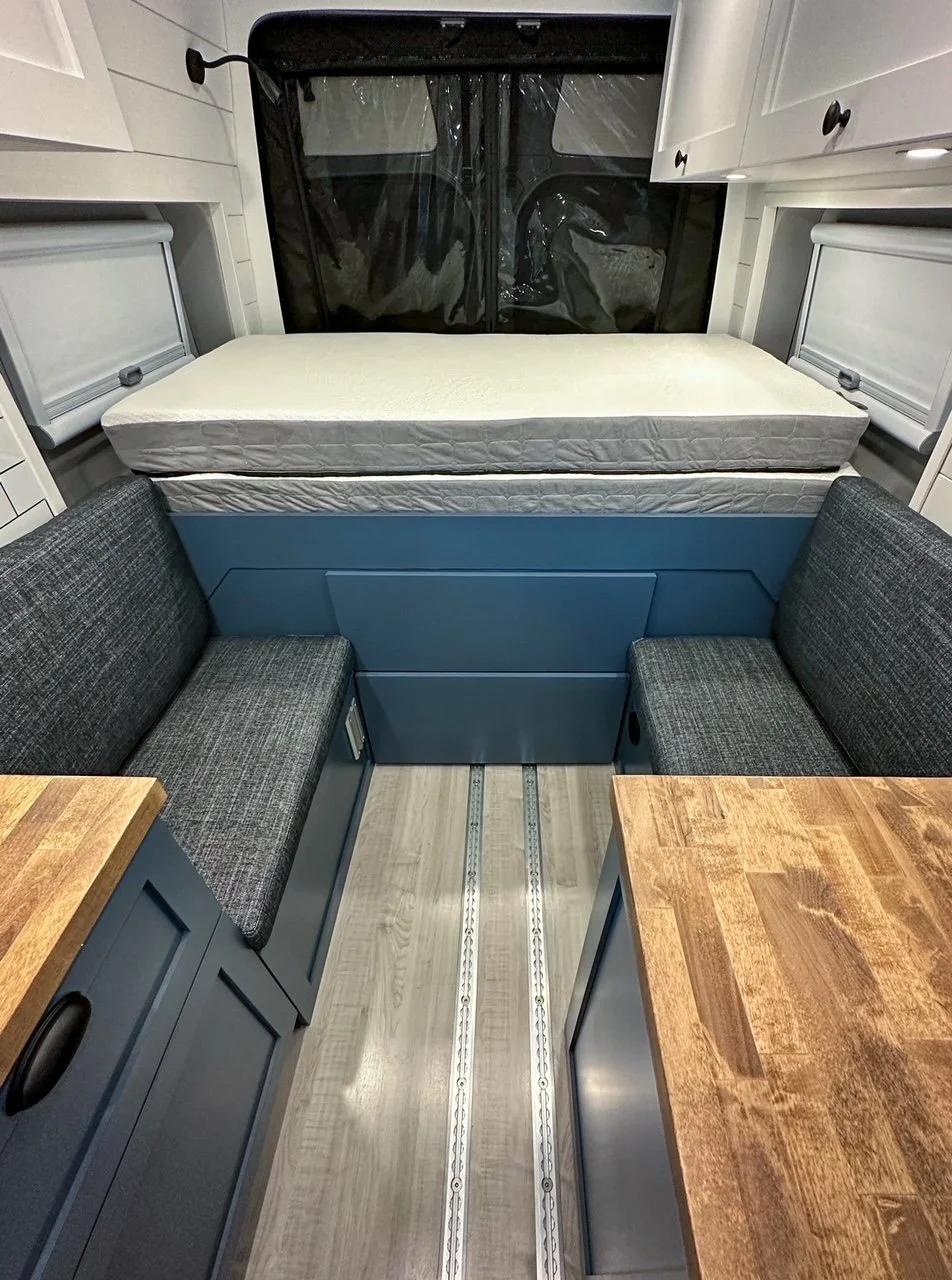

  • 30” wide opposing bench seats with Lagun table mount

  • Vertically mounted flip-up/ removable panels can be removed to fill in space between bench seats

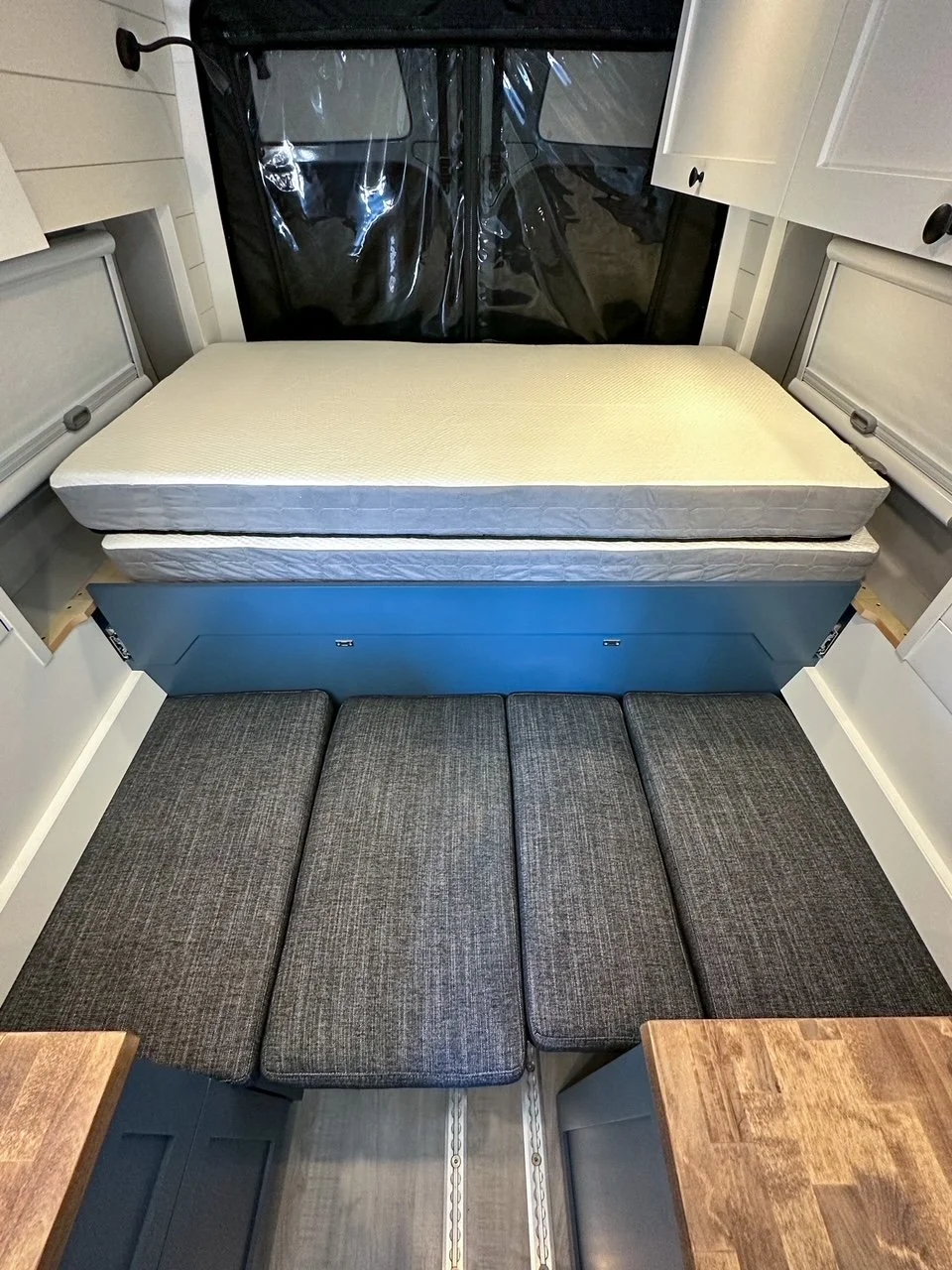

  • Secondary sleeping space utilizing existing bench cushions and panels

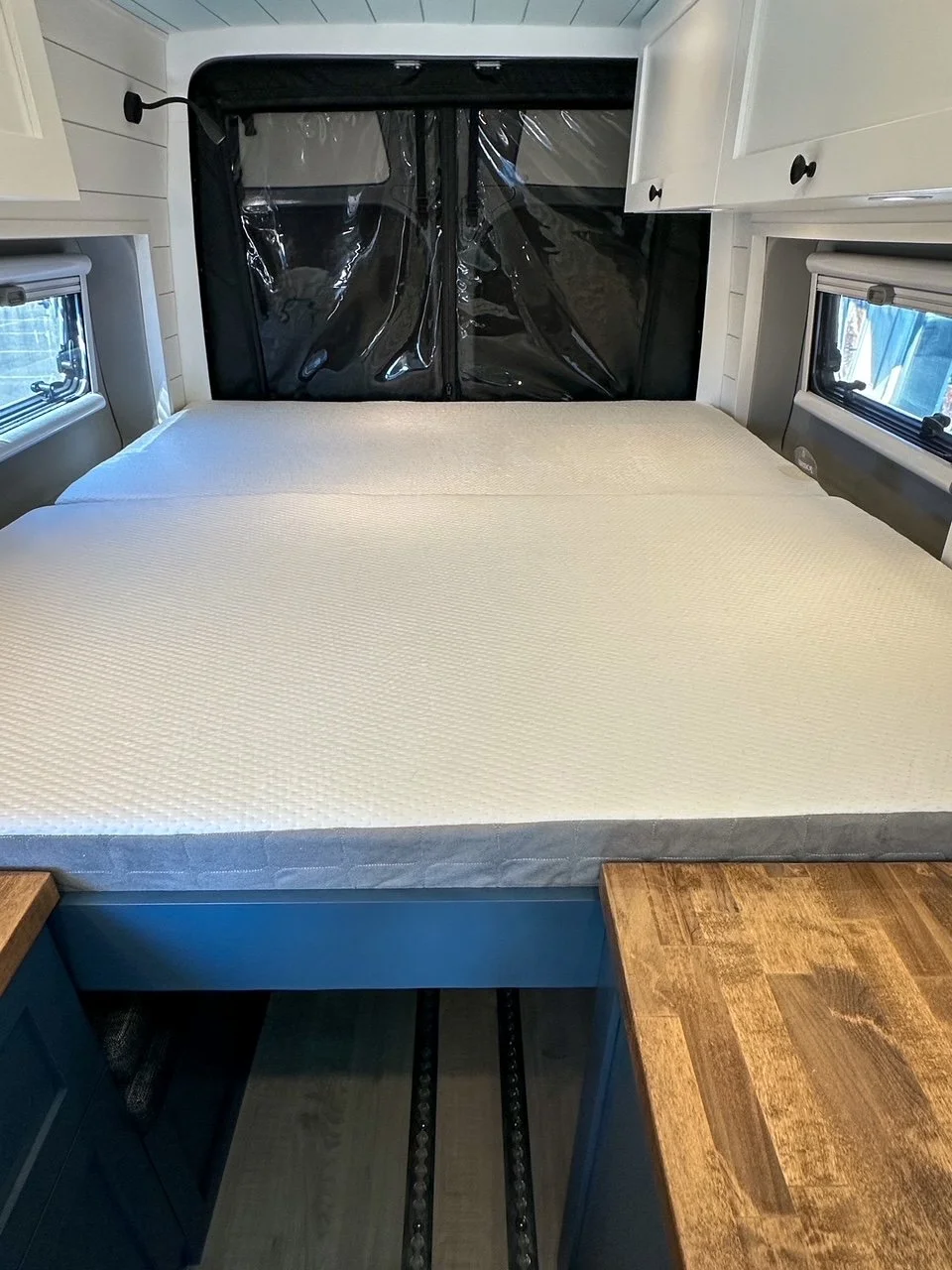

  • Fully extended bed platform

  • Extension on 500 lb. drawer slides and controlled by electric actuators to extend/retract the platform at the push of a button.

  • Custom 5” mattress and bedding

  • Flarespace flares

    • Tern Overland awning style windows

    • Integrated bug screens and window shade

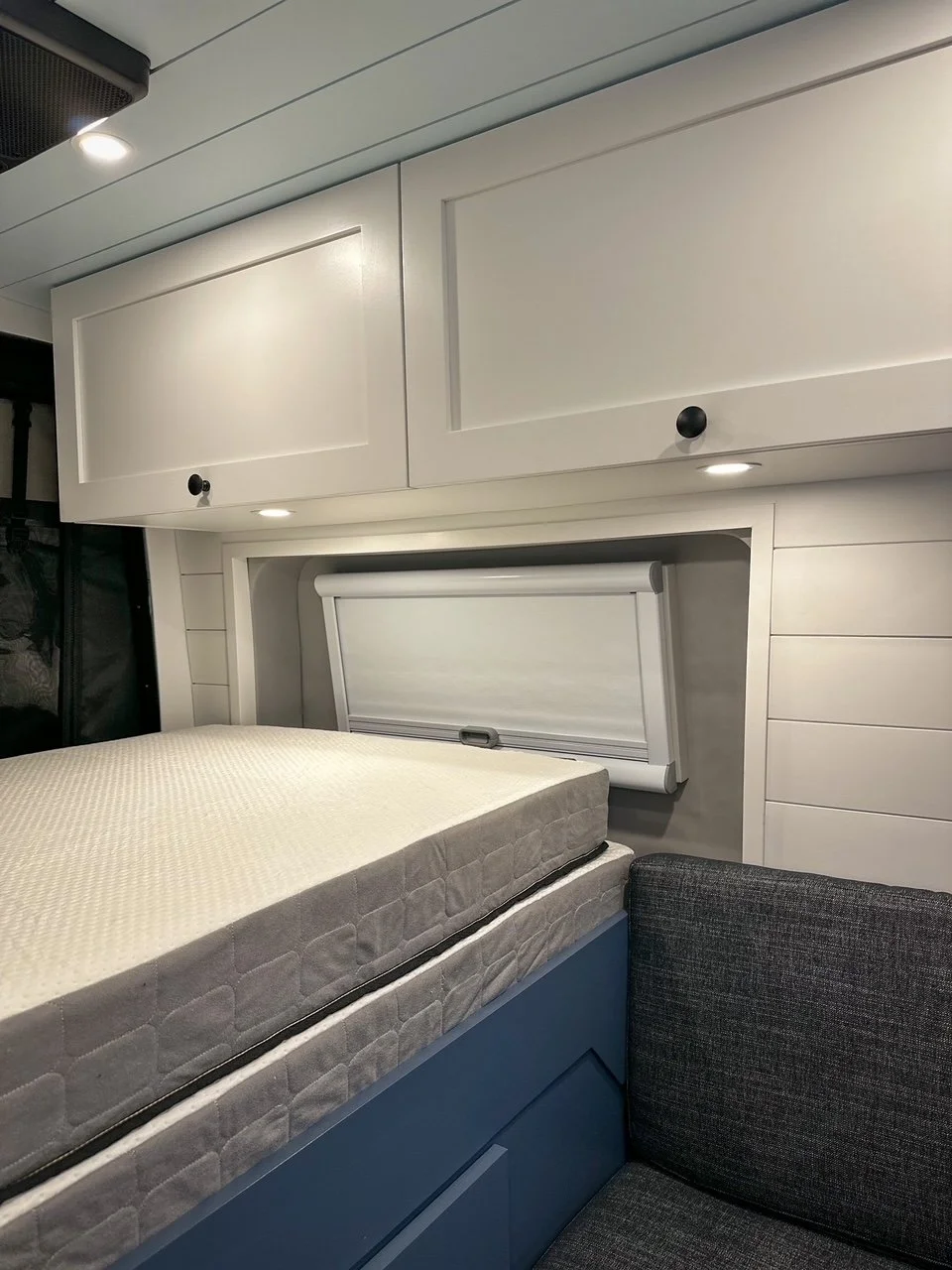

  • Overhead storage cabinets with undercabinet lighting

  • Additional storage inside bench seats

  • Espar diesel heater with EasyStart Pro timer

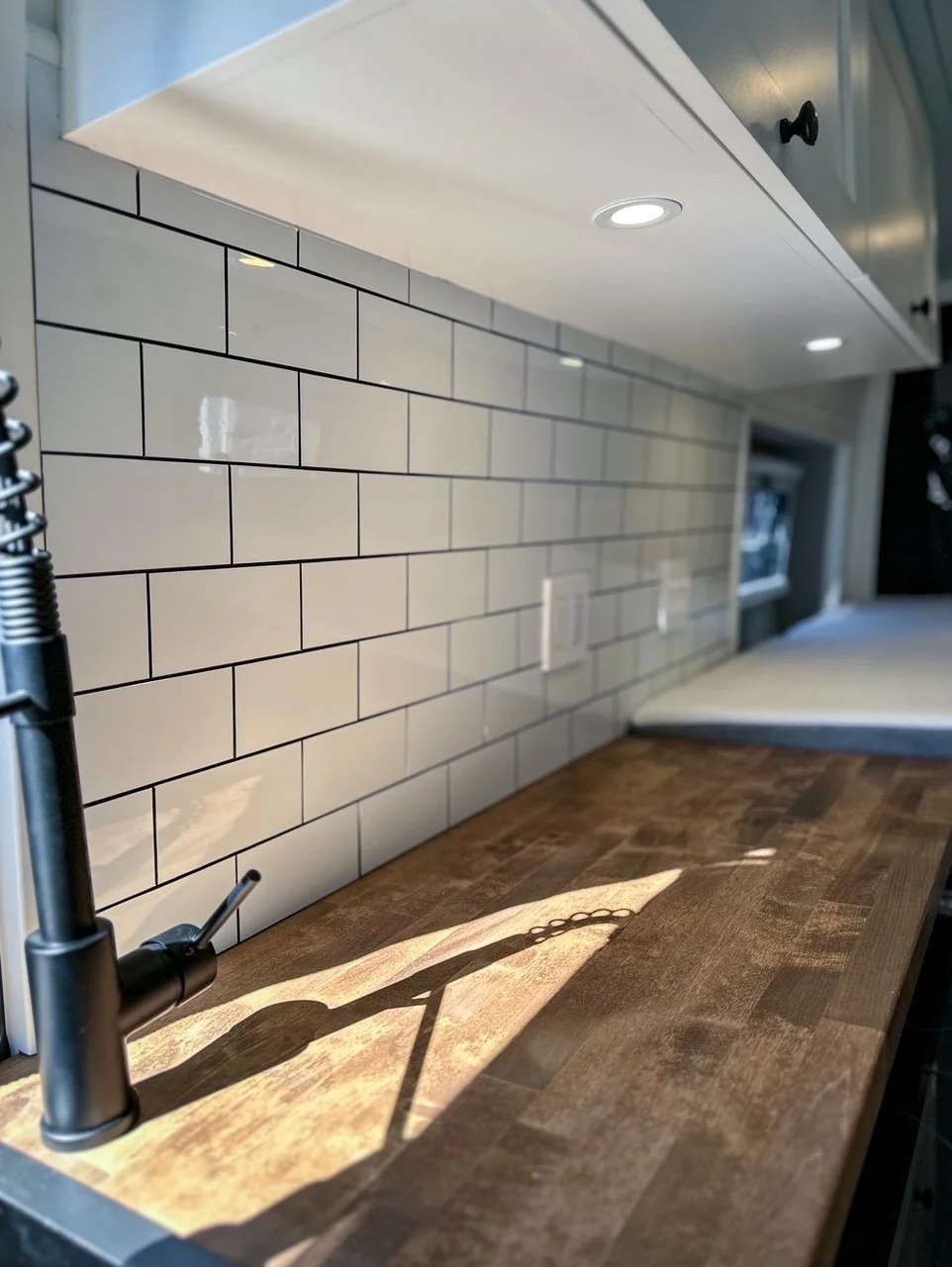

  • Aluminum subway tile backsplash

  • 3 zones dimmable LED lighting

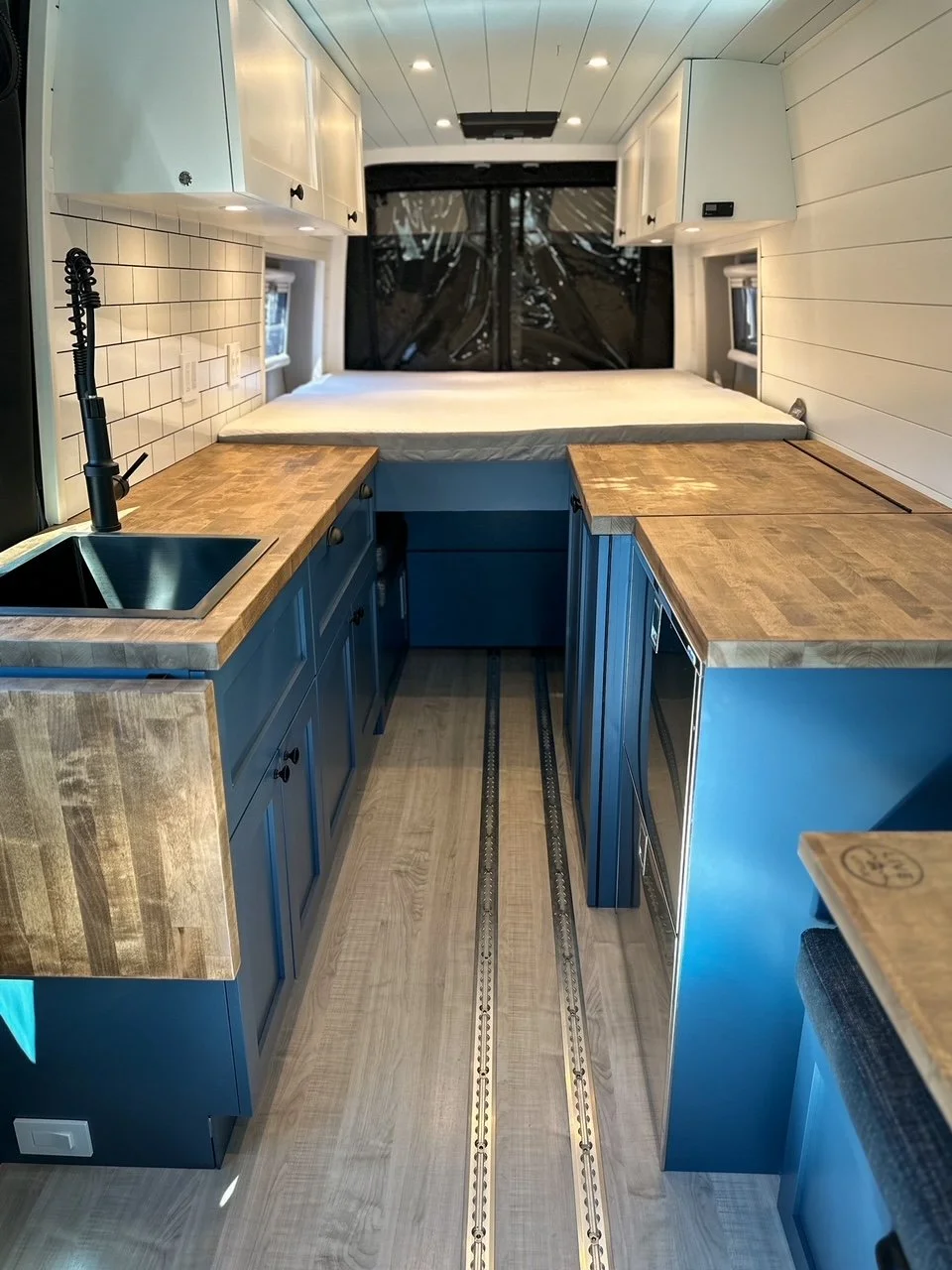

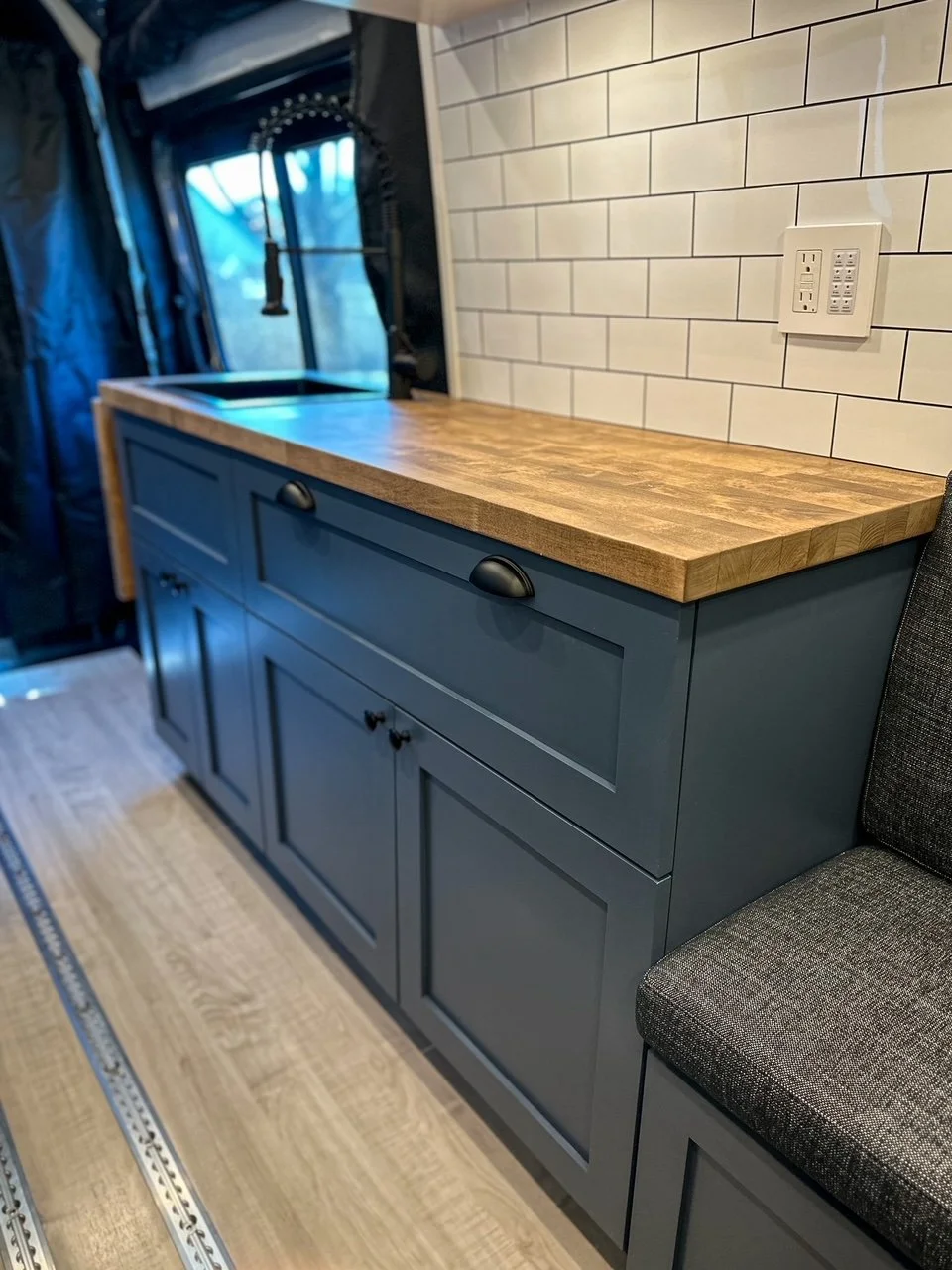

  • Custom cabinetry with Shaker doors

  • Butcher block countertops

  • Benjamin Moore Clear Skies painted shiplap ceiling

  • Gunmetal 15x17x10” sink

  • Coil pull down sprayer facuet

  • Waterdrop filtered water

  • 7 Gallon grey water storage tank

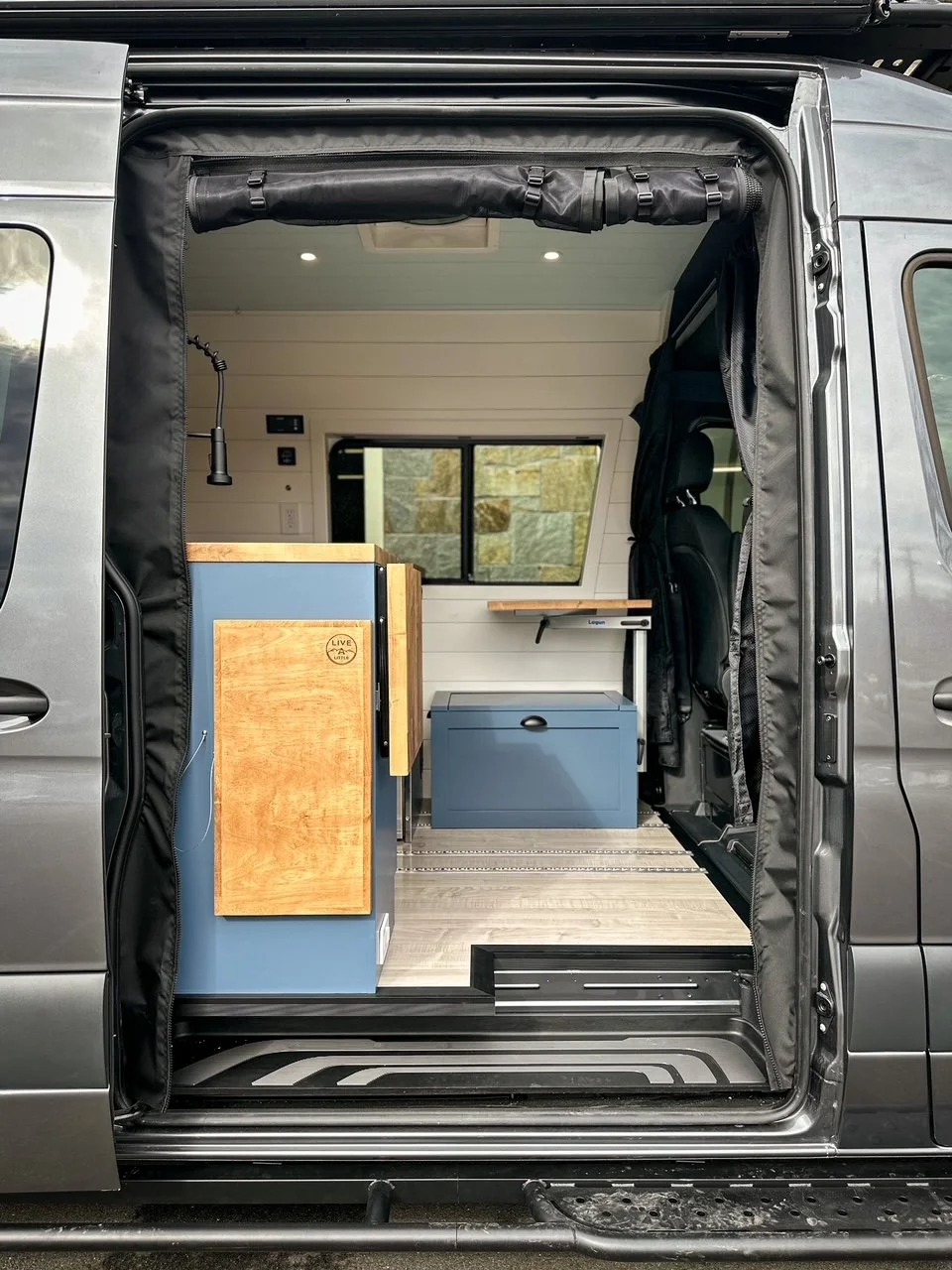

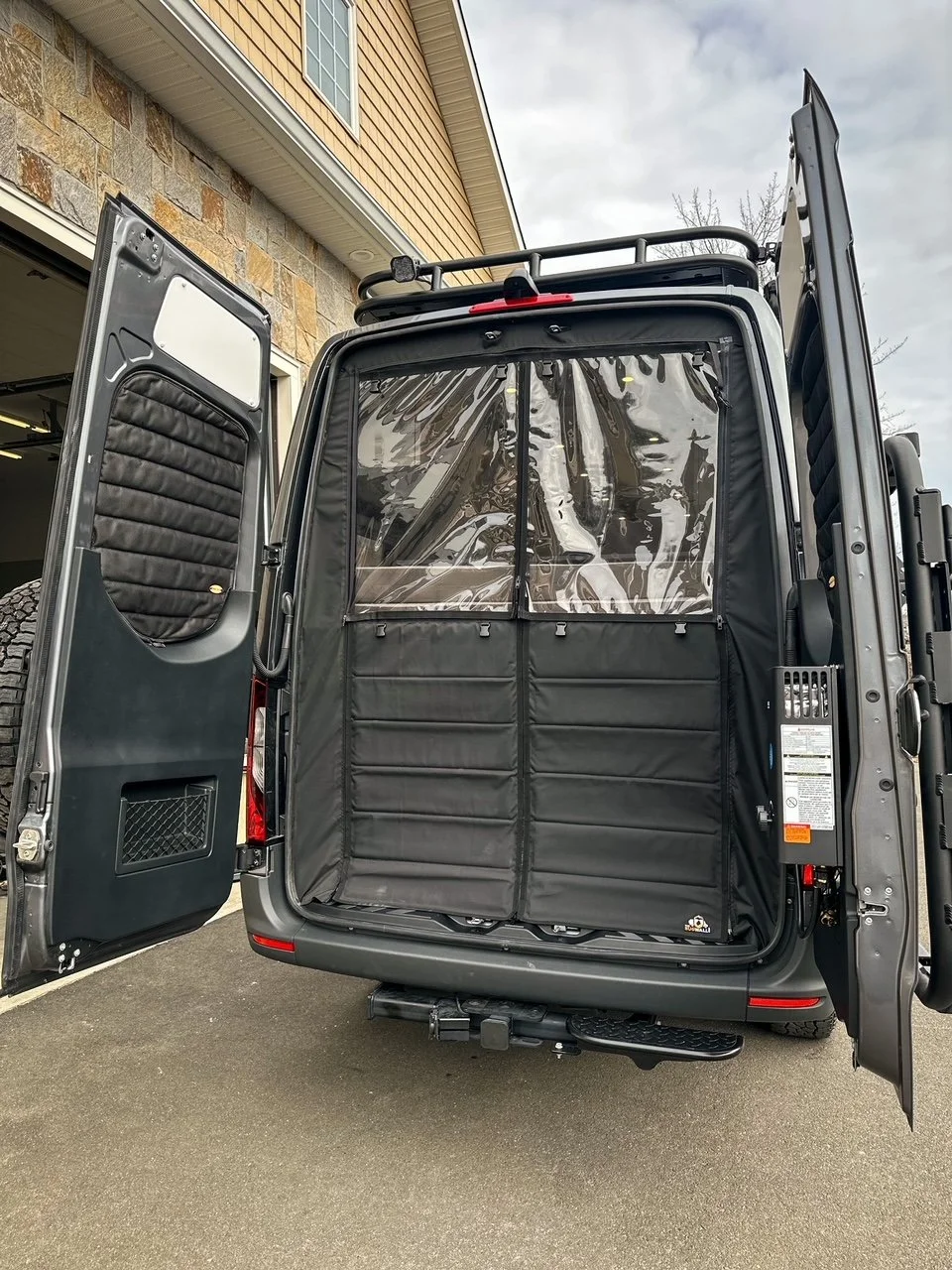

  • BugWall Garage screen set

  • Camplux propane outdoor hot water shower

  • Northwest Conversion 24 gallon wheel well water tank

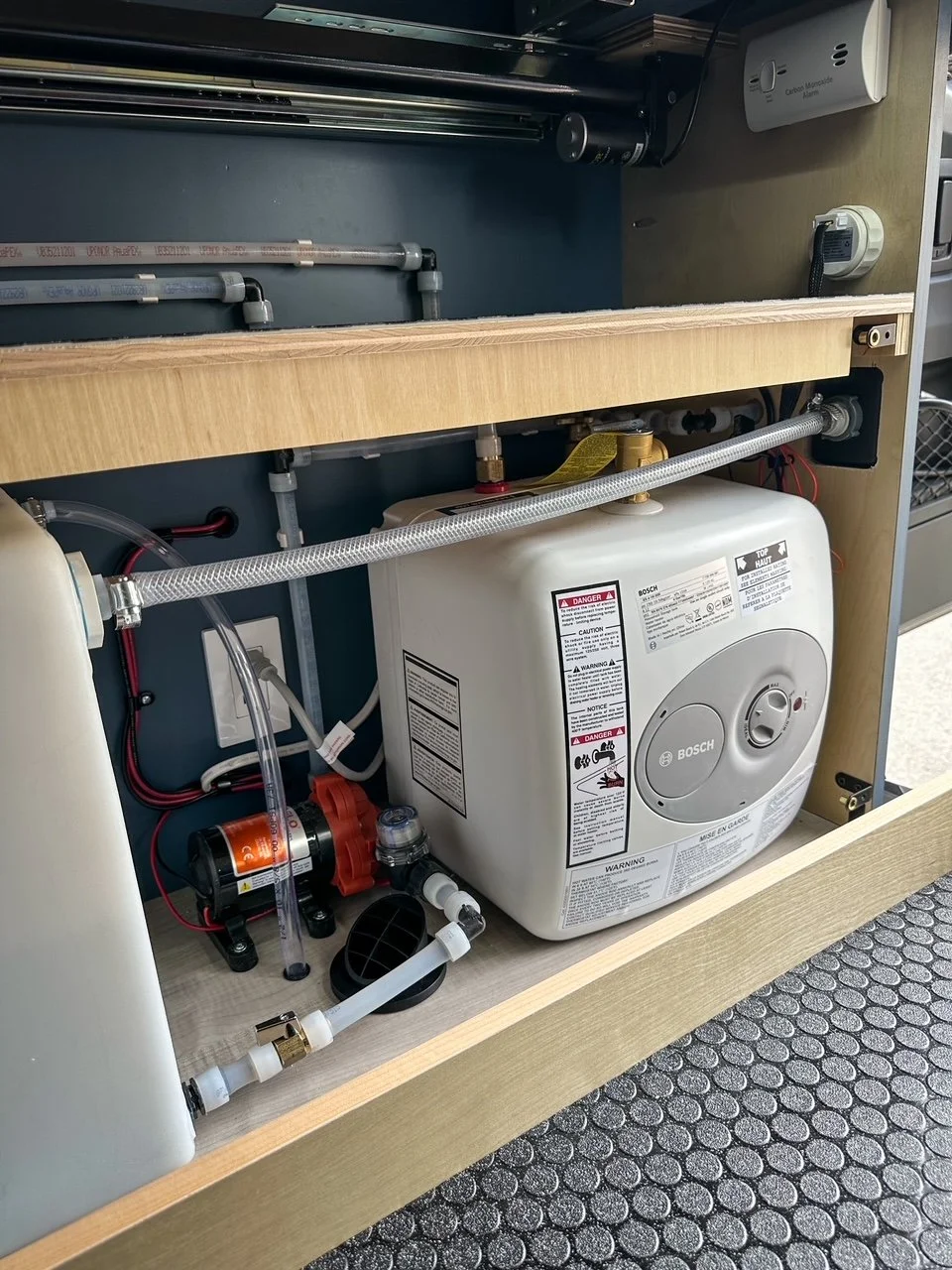

  • Bosch 4 gallon hot water heater

  • SeaFlow 12V waterpump

  • Uponor PEX plumbing

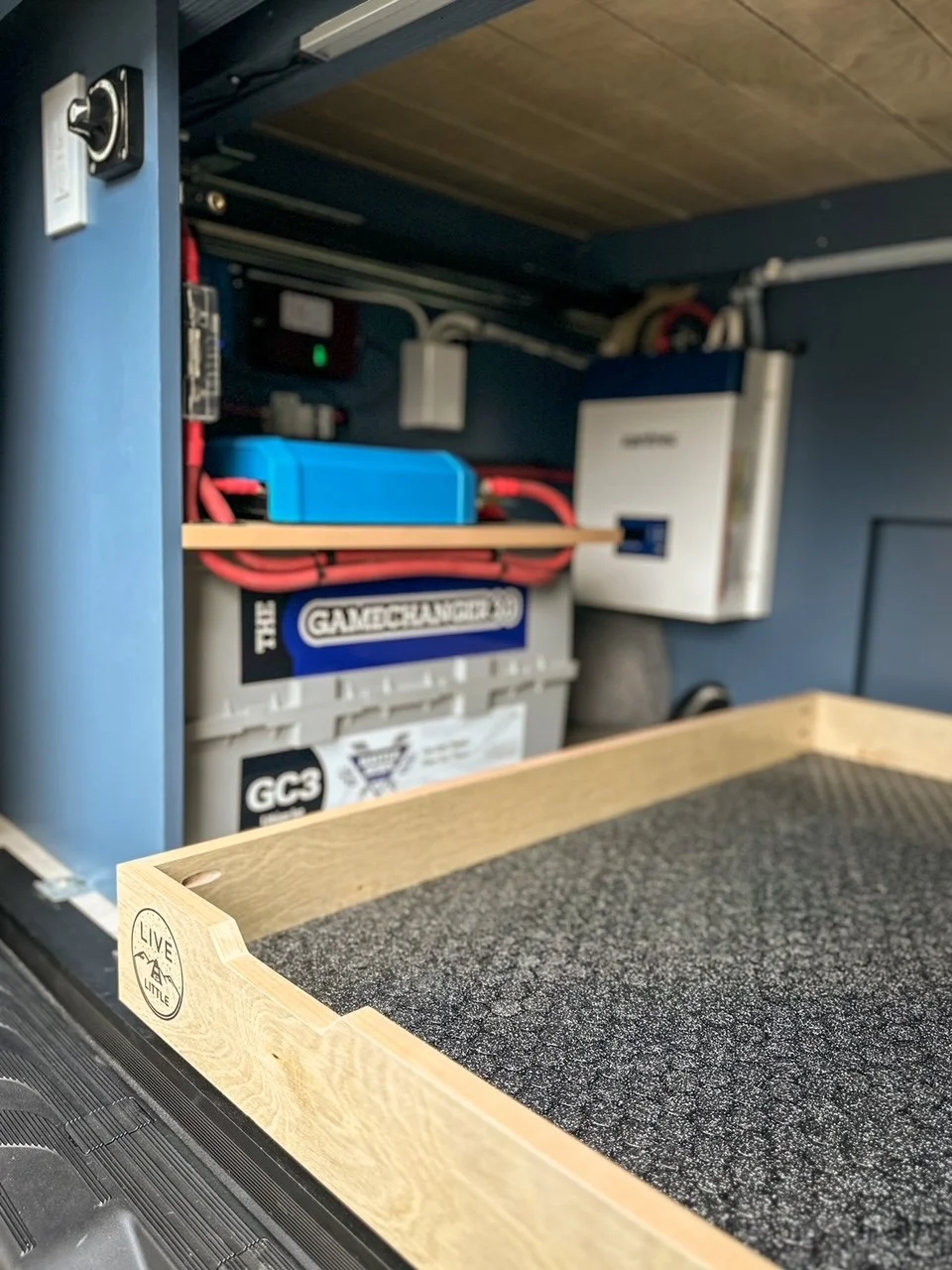

  • Sliding gear tray on 500 lb. locking slides

  • LonCoin vinyl floor covering

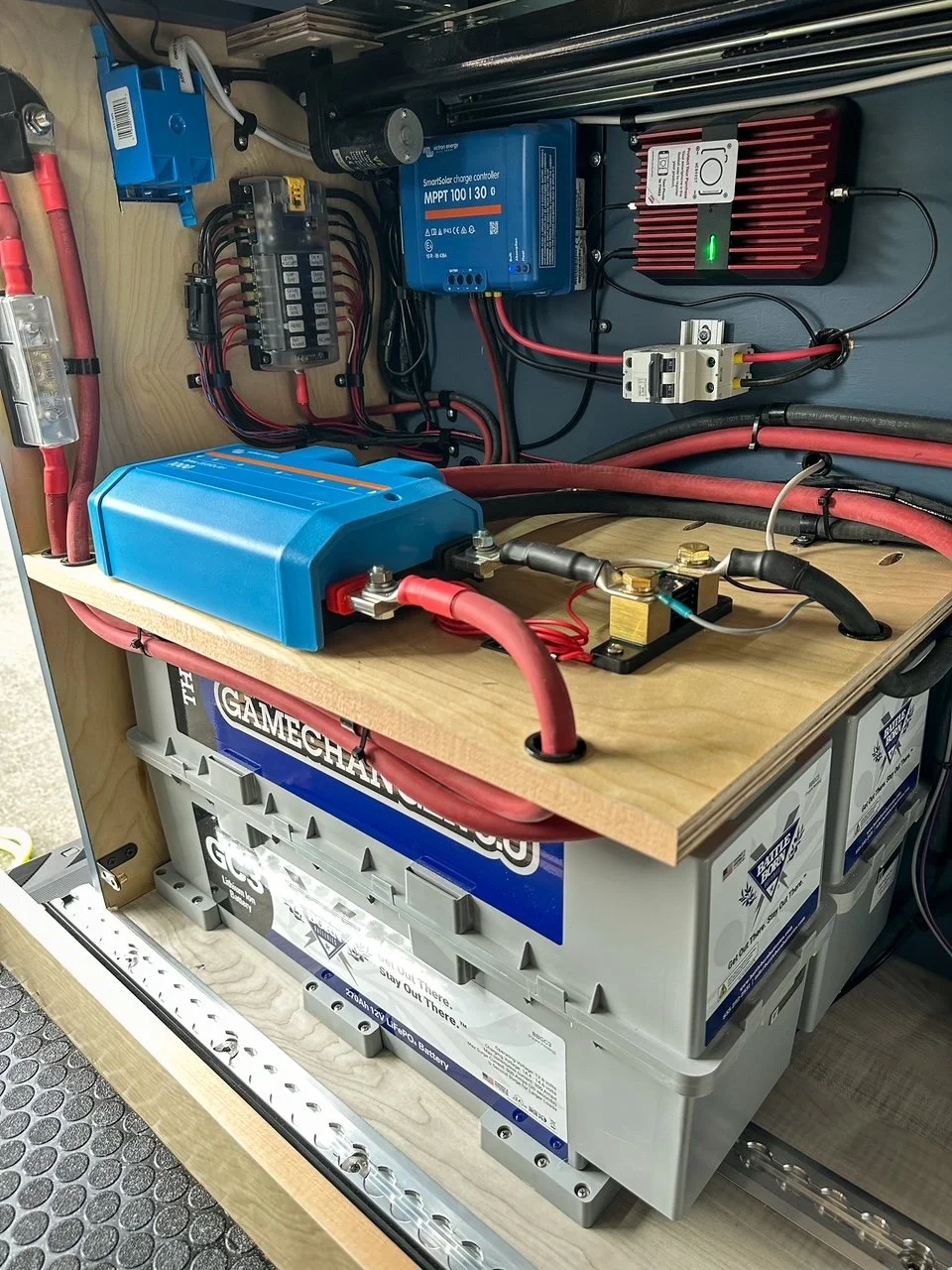

  • BattleBorn 540ah Lithium battery bank

  • Nations 280A secondary alternator with Wakespeed regulator

  • Victron components with Bluetooth connectivity

  • Xantrex 3,000 watt inverter/charger

  • weBoost cell signal booster

  • Owl Vans Expedition rear tire carrier

  • Owl Vans B2 carrier

  • Flatline Van Co. side ladder

  • Flatline Van Co. safari roof rack

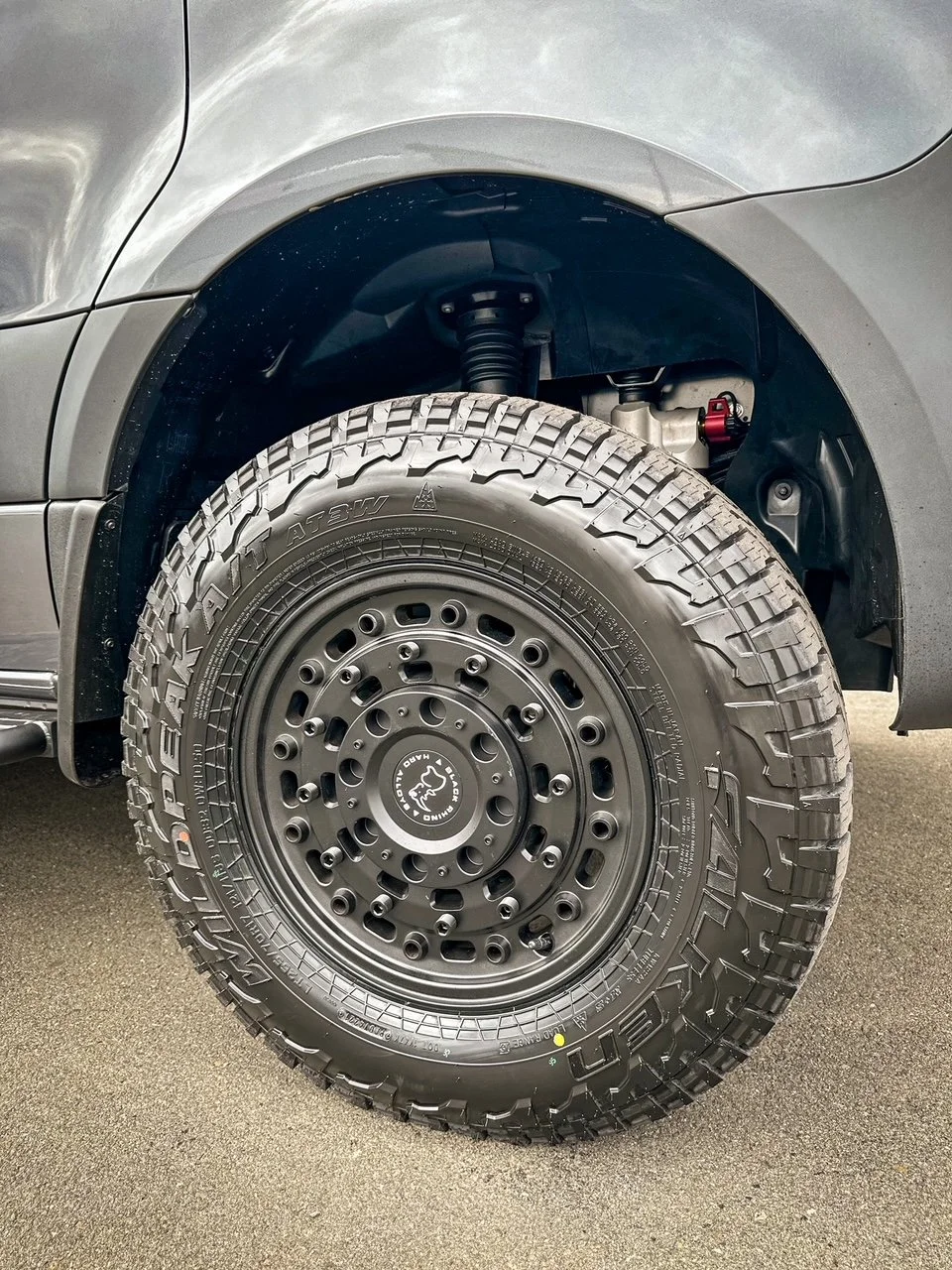

  • Black Rhino Arsenal wheels with 265/70 Falken Wildpeak AT3 tires

  • Van Compass 4.3 suspension

  • Agile Offroad No Rub front fender kit

  • CA Tuned front bumper

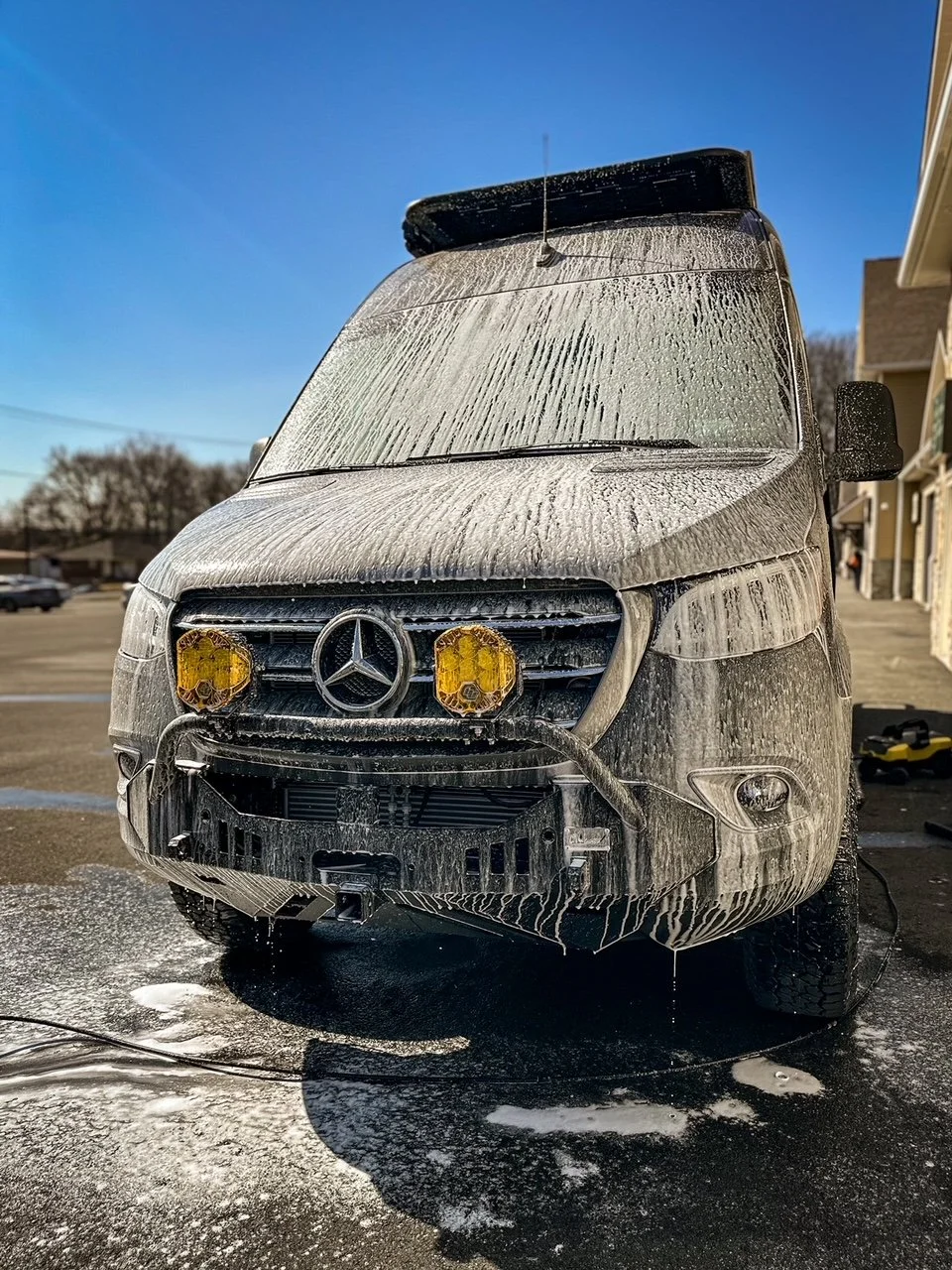

  • Baja Designs LP6 driving lights with amber covers

  • RennTech tune

  • PedalBox controller
